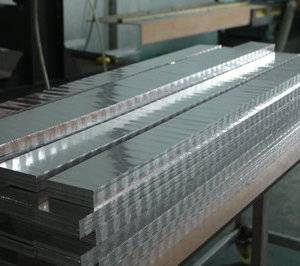

Discription of aluminum honeycomb core
The Aluminum honeycomb core is composed by multi-layer aluminum foil , honeycomb is formed after fully expanded. Our aluminum honeycomb core has sharp and clear hole surface, and it is suitable for adhering to high grade aluminum sheets as well as other purposes, At present , two types of product we mainly produced are micro-aperture aluminum core and normal aluminum core.
Aluminum honeycomb core is made of 3003 type aluminum alloy foil, which is composed of many hexagonal structures. 3003 type aluminum honeycomb core, having all kinds of dimensions and densities, is a kind of green and environmental compounded materials of high quality, low density, fire protection, sound insulation and thermal insulation. The interconnected honeycomb cores are just like thousands of double-T steel panels. The core layer is distributed on the whole panel, with a good resistance to shearing, bending and compression.
| Node (mm) | Cell size (inch) | Foil thickness (mm) | Max Size (WxL)(mm) |
| 1.5 | 1/10 | 0.03 /0.04 | 1200x1500 |
| 1.83 | 1/8 | 0.04 | 1600x2000 |
| 0.06 | 1600x1600 | ||
| 2 | 1/8 | 0.04 | 1600x2000 |
| 0.06 | 1600x1600 | ||
| 2.5 | 1/6 (4.2mm) | 0.04 | 1600x2200 |
| 0.06 | 1600x2000 | ||
| 3.0 | 1/5 (5mm) | 0.04 | 1600x2400 |
| 0.06 | 1600x2200 | ||
| 0.08 | 1600x2000 | ||
| 0.10 | 1600x1800 | ||
| 4.0 | 1/4 (6.35mm) | 0.04 | 1600x3100 |
| 0.06 | 1600x2400 | ||
| 0.08 | 1600x2200 | ||
| 0.10 | 1600x2000 | ||
| 5.0 | 1/3 (8.5mm) | 0.04 | 1600x4000 |
| 0.06 | 1600x3000 | ||
| 0.08 | 1600x2200 | ||
| 0.10 | 1600x2000 | ||
| 6.0 | 3/8 (9.5mm) | 0.04 | 1600x4600 |
| 0.06 | 1600x3200 | ||
| 0.08 | 1600x2800 | ||
| 0.10 | 1600x2400 | ||
| 7.5 | 1/2 (12.7mm) | 0.04 | 1600x6000 |
| 0.06 | 1600x4000 | ||
| 10 | 3/4 (19mm) | 0.04 | 1600x7500 |
| 0.06 | 1600x5000 | ||
| 12 | 4/5 (20.3mm) | 0.04 | 1600x9000 |
| 0.06 | 1600x6000 | ||
| 15 | 1 (25.4mm) | 0.04 | 1600x12000 |
| 0.06 | 1600x7500 | ||
| 20 | 1+3/8 | 0.04 | 1600x15000 |
| 0.06 | 1600x100000 | ||
| 30 | 2 | 0.04 | 1600x20000 |
| 0.06 | 1600x15000 |
Features:
1. Light weight, High intensity, High rigidity, Steady structure and High wind-resistance.
2. Flat and Straight in vision and Diverse in color, Elegant and Bright.
3. Excellent performance in Sound insulation, Heat insulation, Fireproof and quakeproof.
4. Fine decoration effect, Easy and rapid installation.
5. Environmental protection and saving resources.
Applications:
